G2RL-1-E PCB Power Relays

Low Profile Power Relay with 15.7 mm height, ideal for incorporation in miniature equipments

  • A wide variety of single pole, double pole, high-capacity (16 A) type and high-sensitivity type (250 mW) Relays are available.
  • Low profile; 15.7 mm max. in height.
  • Conforms to VDE (EN61810-1), UL508 and CSA22.2.
  • IEC/EN 60335-1 conformed. (-HA Model)
  • Satisfies ambient operating temperature requirement of 85°C and 105°C (-CV Model).
  • Clearance and creepage distance: 8 mm / 8 mm min.
  • Coil insulation system: Class F (UL1446).
  • G2RL-1(A)-E-ASI: TV3 Rating models available.
  • IEC/EN 60079-15 conformed
    (Except G2RL-1(A)-H, G2RL-1A-E-CV(-HA) Models).
RoHS Compliant
Model 2D/3D CAD
G2RL-1-E Download
G2RL-1-E-ASI Download
G2RL-1-E-PW Download
G2RL-1A-E Download
G2RL-1A-E-ASI Download
G2RL-1A-E-CV-HA Download
Note: This web page provides an excerpt from a datasheet. Refer to Product Datasheet and other applicable documents for more information.

Terminal ShapeMarket CodeClassificationContact formEnclosure ratingModelRated coil voltageMinimum packing
unit
PCB terminalsGeneral
purpose
High-capacitySPST-NO (1a)Flux protectionG2RL-1A-E5、12、24、48 VDC20 pcs/tube
G2RL-1A-E-ASI
G2RL-1A-E-CV5、12、24 VDC
SealedG2RL-1A4-E5、12、24、48 VDC
SPDT (1c)Flux protectionG2RL-1-E
G2RL-1-E-ASI
G2RL-1-E-PW5、12、24 VDC
SealedG2RL-14-E5、12、24、48 VDC
Home
Appliance
High-capacitySPST-NO (1a)Flux protectionG2RL-1A-E-HA5、12、24 VDC
G2RL-1A-E-CV-HA
SPDT (1c)G2RL-1-E-HA
■Ratings
●Coil

item
Rated voltage (V)
Rated current
(mA)
Coil resistance
(Ω)
Must operate
voltage (V)
Must release
voltage (V)
Max.
voltage (V)
Power
consumption (mW)
% of rated voltage
Standard
High- Capacity
5 VDC80.062.570% max.10% min.
10 to 32% *
130%
(at 85°C)
Approx. 400
Approx. 100 *
12 VDC33.3360
24 VDC16.71,440
48 VDC8.965,358Approx. 430
High sensitivity5 VDC509675% max.10% min.Approx. 250
12 VDC20.8576
24 VDC10.422,304

Note 1. The rated current and coil resistance are measured at a coil temperature of 23℃ with a tolerance of ±10%.
Note 2. The operating characteristics are measured at a coil temperature of 23℃.
Note 3. The “Max. voltage” is the maximum voltage that can be applied to the relay coil.
* These numbers are only for -PW type. Power consumption with Holding Voltage is approx.100mW. Please confirm the detail in page 6 Coil Voltage Reduction (Holding Voltage).


●Contacts: Flux Protection Type
Classification
Model
Item
Standard type (resistive load)High-capacity type (resistive load)High-sensitivity type (resistive load)
1-pole2-pole1-pole
Contact typeSingle
Contact materialAg-alloy (Cd free)
Rated load12 A at 250 VAC
12 A at 24 VDC
(See note)
8 A at 250 VAC
8 A at 30 VDC
(See note)
16 A at 250 VAC
16 A at 24 VDC
(See note)
10 A at 250 VAC
(See note)
Rated carry current12 A (See note)8 A (70°C)/5 A (85°C)
(See note)
16 A (See note)10 A (See note)
Max. switching voltage440 VAC, 300 VDC
Max. switching current12 A8 A16 A10 A
Failure rate (P level)
(reference value*)
40 mA at 24 VDC

This value was measured at a switching frequency of 120 operations/min.
Note: Contact your OMRON representative for the ratings on fully sealed models.

■Characteristics
●Flux Protection Type
Classification
Item
Number of poles
Standard type High-capacity typeHigh-sensitivity type
1-pole2-pole1-pole
Contact resistance *1100 mΩ max.
Operate (set) time15 ms max.
Release (reset) time5 ms max.
Insulation resistance *21,000 MΩ min.
Dielectric
strength
Between coil and
contacts
5,000 VAC, 50/60 Hz for 1min
Between contacts
of the same
polarity
1,000 VAC, 50/60 Hz for 1min
Between contacts
of different polarity
Impulse withstand voltage10 kV (1.2 x 50 μs)
Vibration
resistance
Destruction10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Malfunction10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Shock
resistance
Destruction1,000 m/s2
MalfunctionEnergized: 100 m/s2, De-energized: 100 m/s2
DurabilityMechanical20,000,000 operations (at 18,000 operations/hr)
Electrical *3
(resistive load)
G2RL-1A, G2RL-1(-HA):
50,000 operations at 250 VAC, 12 A
30,000 operations at 24 VDC, 12 A
G2RL-2(A)(-HA), G2RL-2-ASI:
30,000 operations at 250 VAC, 8 A
30,000 operations at 30 VDC, 8 A
G2RL-1A-E(-ASI,-HA),
G2RL-1-E(-ASI,-HA, -PW):
30,000 operations at 250 VAC, 16 A
30,000 operations at 24 VDC, 16 A
G2RL-1A-E-CV(-HA):
50,000 operations at 250 VAC, 16 A
at 105°C
G2RL-1(A)-H:
50,000 operations at 250 VAC, 10 A
Ambient operating temperature-40°C to 85°C (with no icing or condensation)
-40°C to 105°C (with no icing or condensation) by G2RL-1A-E-CV
Ambient operating humidity5% to 85% (with no icing or condensation)
WeightApprox. 12 g

Note 1. Values in the above table are the initial values at 23°C.
Note 2. Contact your OMRON sales representative for sealed models.
*1. Measurement conditions: 5 VDC, 1 A, voltage drop method
*2. Measurement conditions: Measured at the same points as the dielectric strength using a 500 VDC ohmmeter.

*3. 1,800 operations per hour.

(Unit: mm)
G2RL-1A-E(-HA), G2RL-1A4-E,
G2RL-1A-E-CV(-HA), G2RL-1A-E-ASI

形G2RL-1-E:外形1
PCB Mounting Holes (BOTTOM VIEW)
形G2RL-1-E:外形2

Terminal Arrangement/ Internal Connections
(BOTTOM VIEW)
形G2RL-1-E:外形3
(No coil polarity)


G2RL-1-E(-ASI, -HA, -PW)
G2RL-14-E

形G2RL-1-E:外形4
PCB Mounting Holes (BOTTOM VIEW)
形G2RL-1-E:外形5

Terminal Arrangement/ Internal Connections
(BOTTOM VIEW)
形G2RL-1-E:外形5
(No coil polarity)

Precautions

● Please refer to “PCB Relays Common Precautions” for correct use.

●Mounting Position Compared to G2R Model

Although the G2RL model and the G2R model are both low profile Relays, their characteristics such as switching capacity are different. Be sure to check operation under the actual operating conditions before use.

●Cleaning

The G2RL model is flux-resistant with two sealing holes on the case. Thus, do not clean the Relay by boiling or soaking in water. Consult your Omron sales representative for sealed type Relay.

●Using Relays in an Atmosphere Containing Corrosive Gas

Do not use Relays in an atmosphere containing corrosive gas (sulfuric or organic gas).Otherwise, connection failure due to corrosion on the contact surface may lead to functional faults.

●Coil Voltage Reduction (Holding Voltage) after Relay Operation

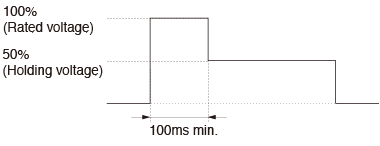

・If the coil voltage is reduced to the holding voltage after Relay operation, first apply the rated voltage to the coil for at least 100 ms, as shown below

・A voltage of at least 50% of the rated voltage is required for the coil holding voltage. Do not allow voltage fluctuations to cause the coil holding voltage to fall below this level.

形G2RL-1-E

Applied coil voltageCoil resistance *Power consumption
Rated voltage100%62.5Ω (5 VDC)
360Ω (12 VDC)
1,440Ω (24 VDC)
Approx. 400 mW
Holding voltage50%Approx. 100 mW
* The coil resistance were measured at a coil temperature of 23°C with tolerances of ± 10%.
