D6T MEMS Thermal Sensors

MEMS Non-Contact Thermal Sensor for Contactless Measurement

  • Achieves the world's highest level*2 of SNR*1 by combining the inhouse designed and manufactured ASIC and MEMS
  • Direct temperature value output allows easy software design
  • Variation of the number of elements (1 to 1024) and the temperature range (-40 to 200°C)
    *1. SNR: Signal-to-Noise Ratio. Compares the level of a signal to the level of background noise. *2 According to OMRON's research as of February 2021, except for D6T-32L-01A.
RoHS Compliant
Model 2D/3D CAD
D6T-1A-01 Download
D6T-1A-02 Download
D6T-32L-01A Download
D6T-44L-06 Download
D6T-44L-06H Download
D6T-8L-09 Download
D6T-8L-09H Download
D6T-HARNESS-02 Download
Note: This web page provides an excerpt from a datasheet. Refer to Product Datasheet and other applicable documents for more information.

Contactless Measurement OMRON MEMS
Thermal Sensors are able to detect the
slightest temperature changes

  • MEMS Thermal (IR sensor) measures the surface temperature of objects without touching them when the thermopile element absorbs the amount of radiant energy from the object.

    1

    Low noise

    World's highest-class stable temperature output*
    *According to OMRON's research as of February 2021, except for D6T-32L-01A.

    2

    Easy connection

    Direct temperature value output allows easy software design

    3

    Number of elements and temperature lineup

    Variation of the number of elements (1 to 1024) x temperature range (-40 to 200°C)

  • D6T MEMS Thermal Sensors
1

High Precision

World's highest-class stable temperature output*
*According to OMRON's research as of February 2021, except for D6T-32L-01A.

  • Output was unstable in applications requiring high precision
  • Stable temperature output
  • OMRON D6T-1A-01
    OMRON D 6T-1A-01 Stable output
    Standard Equivalent Product
    Standard Equivalent Product Output fluctuation
  • Note 1. According to OMRON's evaluation method (30-second continuous measurement with a blackbody furnace at 25°C)
  • Note 2. However, product specifications are not guaranteed.
-High Precision- Why?
Achieves the world's highest level*2of SNR*1
by combining the in-house designed and
manufactured ASIC and MEMS
  • In-house manufactured ASI
  • ×
  • In-house manufactured MEMS
OMRON designs and manufactures both ASIC and MEMS thermopiles in-house.
OMRON's unique digital filter and process optimization reduce the noise of ASIC,
achieving the world's highest-level SNR.
  • *1 SNR: Signal-to-Noise Ratio. Compares the level of a signal to the level of background noise.
  • *2 According to OMRON's research as of February 2021, except for D6T-32L-01A.
Product Structure

OMRON's unique MEMS technology allows combining thermopile elements and ASICs into one package, resulting in ultra-compact footprint and high precision.

  • Infrared ray : Silicon lens far-infrared focusing -> MEMS thermopile Electromotive force occurrence -> ASIC Low noise amplifiere -> MCU A/D conversion, calculation, I2C and I/F Detect wavelengths in the range 8-12 ­m
  • MEMS thermopile detection principle : The sensor utilizes the seebeck effect in which thermoelectric force is generated due to the temperature difference that occurs across the junction points of two different types of metal.
2

Easy connection

Direct temperature value output allows easy software design

  • OMRON D6T
    Temperature value output
    Sensor MEMS -> (Voltage) -> A/D conversion -> (Bit value) -> Temperature conversion(Temperature value) -> Customer MCU
  • CAN packaged thermal sensor from a competitor
    Bit value output
    Sensor MEMS(Voltage) -> A/D conversion(Bit value) -> Customer MCU
Provision of Development Support Tool

MEMS thermal sensors can be connected to OMRON sensor evaluation boards. The below 3 types of platform are applicable. Evaluation can be performed easily by connecting thermal sensor, evaluation board, and harness to the platform.

scroll
Sensor Harness for Connection Evaluation Board Platform Sample Code
D6T 2JCIE-HARNESS-01 2JCIE-EV01-RP1 Raspberry Pi*1 https://github.com/omron-devhub/d6t-2jcieev01-raspberrypi
2JCIE-EV01-AR1 Arduino*2 https://github.com/omron-devhub/d6t-2jcieev01-arduino
2JCIE-EV01-FT1 ESP32 Feather*3 https://github.com/omron-devhub/d6t-2jcieev01-arduino
  • *1. Raspberry Pi is a registered trademark of the Raspberry Pi Foundation.
  • *2. Arduino is a registered trademark of Arduino LLC and Arduino SRL.
  • *3. Feather is a registered trademark of Adafruit Industries LLC.
3

Number of elements and temperature lineup

Variation of the number of elements (1 to 1024) and the temperature range (-40 to 200°C)

scroll

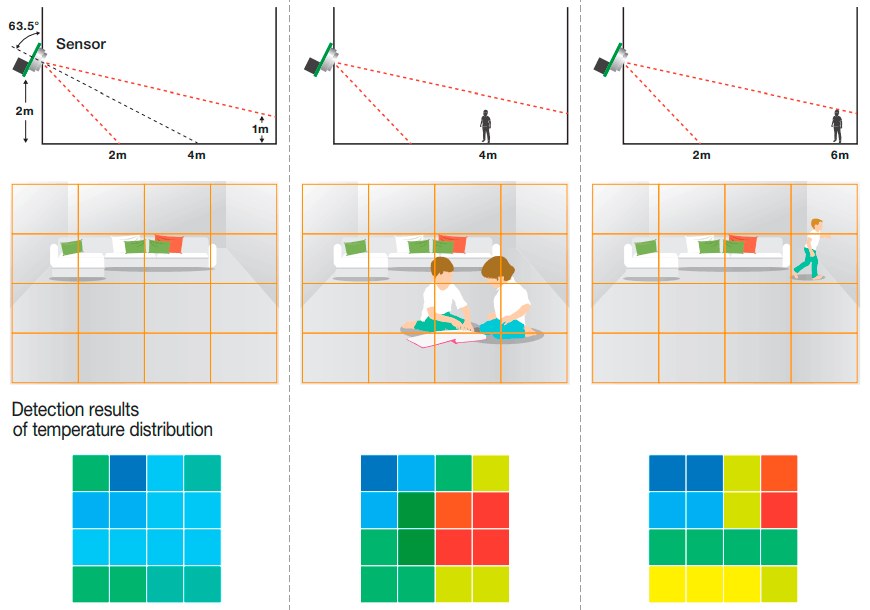

Example Applications
The sensors can be used in a wide range of applications, depending on the temperature measurement range.
scroll
  • Refrigerator Interior &
    Room Temperature Detection
    Able to detect temperature
    from a long distance
  • Human Presence
    Detection
    Able to detect stationary
    human presence
  • Screening of Humans
    with Fever
    Contributes to automated
    non-contact temperature
    detection
  • Abnormal High Temperature
    Monitoring
    Contributes to prevention
    of fires due to overheating
  • Home appliances
    (refrigerators & air conditioners)
  • Air conditioners &
    lighting systems
  • Room-Entry Management
    Equipment
  • Transformers &
    distribution boards
40℃- (Refrigerator Interior & Room Temperature Detection) Able to detect temperature from a long distance : Home appliances (refrigerators & air conditioners) Recommended Models 1×1 1×8 (Human Presence Detection)Able to detect stationary human presence : Air conditioners & lighting systems Recommended Models 1×8 4×4 32×32 (Screening of Humans with Fever)Contributes to automated non-contact temperature detection : Room-Entry Management Equipment Recommended Models 1×1 1×8 4×4 (Abnormal High Temperature Monitoring) Contributes to prevention of fires due to overheating : Transformers & distribution boards Recommended Models 1×8 4×4 32×32 200℃ 40℃- (Refrigerator Interior & Room Temperature Detection) Able to detect temperature from a long distance : Home appliances (refrigerators & air conditioners) Recommended Models 1×1 1×8 (Human Presence Detection)Able to detect stationary human presence : Air conditioners & lighting systems Recommended Models 1×8 4×4 32×32 (Screening of Humans with Fever)Contributes to automated non-contact temperature detection : Room-Entry Management Equipment Recommended Models 1×1 1×8 4×4 (Abnormal High Temperature Monitoring) Contributes to prevention of fires due to overheating : Transformers & distribution boards Recommended Models 1×8 4×4 32×32 200℃
Comparison with Pyroelectric Sensor

Both the pyroelectric sensor and non-contact MEMS thermal sensor can detect even the slightest amount of radiant energy from objects such as infrared radiation and convert them into temperature readings. However, unlike pyroelectric sensor that relies on motion detection, non-contact MEMS thermal sensor is able to detect the presence of stationary humans (or objects).

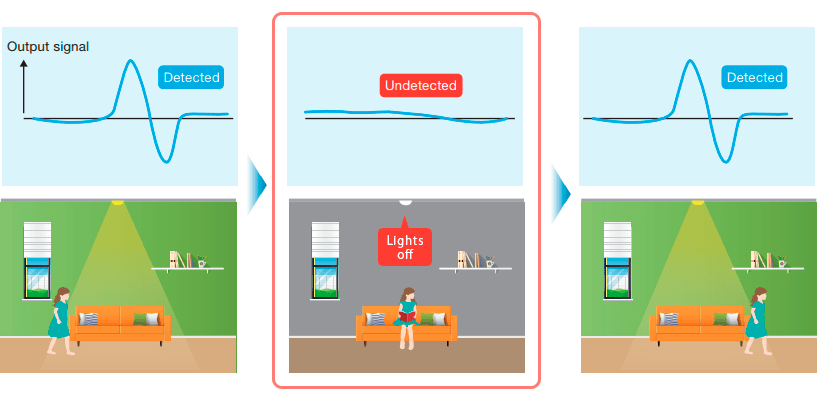

Pyroelectric sensor
Converts temperature readings only when detecting “temperature changes in the radiant energy” in its field of view.
Able to detect both stationary and motion state of humans (objects).
Able to detect both stationary and motion state of humans (objects).

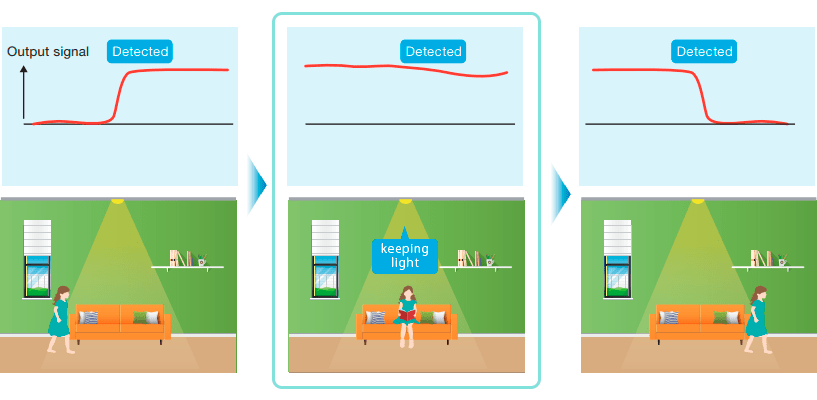

MEMS thermal sensor (thermopile)
Converts temperature readings by “continuously detecting the temperature of radiant energy” in its field of view
Unable to detect stationary human (object) presence
Able to detect both stationary and motion state of humans (objects).

Ordering Information

Element type Model Shape
1×1 D6T-1A-01 D6T-1A
D6T-1A-02
1×8 D6T-8L-09 D6T-8L-09/09H
D6T-8L-09H
4×4 D6T-44L-06 D6T-44L-06/06H
D6T-44L-06H
32×32 D6T-32L-01A D6T-32L-01A

Ratings

Item Model D6T-1A-01 D6T-1A-02 D6T-8L-09 D6T-8L-09H D6T-44L-06 D6T-44L-06H D6T-32L-01A
Power supply voltage 4.5 to 5.5 VDC
Storage temperature range* −20 to 80°C −40 to 80°C −20 to 80°C −10 to 60°C −20 to 80°C
Operating temperature range* 0 to 60°C −40 to 80°C 0 to 60°C 0 to 50°C −10 to 70°C
Storage humidity range* 95% max. 95% max. 95% max. 85% max. 95% max.
Operating humidity range* 20% to 95% 20% to 95% 20% to 95% 20% to 85% 20% to 95%
  • * with no icing or condensation

Characteristics

Item Model D6T-1A-01 D6T-1A-02 D6T-8L-09 D6T-8L-09H D6T-44L-06 D6T-44L-06H D6T-32L-01A
View angle*¹ X direction 58.0° 26.5° 54.5° 44.2° 90°
Y direction 58.0° 26.5° 5.5° 45.7° 90°
Object temperature
output accuracy*²
Accuracy 1 ±1.5°C max.
Measurement conditions: Vcc = 5.0 V
(1) Tx = 25°C, Ta = 25°C
(2) Tx = 45°C, Ta = 25°C
(3) Tx = 45°C, Ta = 45°C
Within ±3.0°C
Measurement conditions: Vcc = 5.0 V
Tx = 25°C,
Ta = 25°C
Central 16x16-
pixel area
Current consumption 3.5 mA typical 5 mA typical 19 mA typical

Functions

Item Model D6T-1A-01 D6T-1A-02 D6T-8L-09 D6T-8L-09H D6T-44L-06 D6T-44L-06H D6T-32L-01A
Object temperature detection range*2 5 to 50°C −40 to 80°C 5 to 50°C 5 to 200°C 5 to 50°C 5 to 200°C 0 to 200°C
Ambient temperature detection range*2 5 to 45°C −40 to 80°C 5 to 45°C 5 to 45°C 5 to 45°C 5 to 45°C 0 to 80°C
Output specifications Digital values that correspond to the object temperature (Tx) and reference temperature
(Ta) are output from a serial communications port.
Output form
(Object temperature detection)
Binary code (10 times the detected temperature (°C)) Binary code
(5 times the detected temperature (°C))
Binary code
(10 times the detected temperature (°C))
Output form
(Reference temperature inside the sensor)
Binary code (10 times the detected temperature (°C))
Communications form I2C compliant
Temperature resolution (NETD)*3 0.02°C
(Data update cycle 100 msec)
0.06°C
(Data update cycle 100 msec)
0.03°C
(Data update cycle 250 msec)
0.06°C
(Data update cycle 300 msec)
0.33°C *4
(Data update cycle 200 msec)

Object Temperature Detection Range

  • D6T-44L-06, D6T-8L-09, D6T-1A-01
    Object Temperature Detection Range : D6T-44L-06, D6T-8L-09, D6T-1A-01
  • D6T-1A-02
    Object Temperature Detection Range : D6T-1A-02
  • D6T-44L-06H, D6T-8L-09H
    Object Temperature Detection Range : D6T-44L-06H, D6T-8L-09H
  • D6T-32L-01A
    Object Temperature Detection Range : D6T-32L-01A

Connections

  • Thermal Sensor Configuration Diagram
    < D6T-8L-09/09H >

    Thermal Sensor Configuration Diagram
  • Terminal Arrangement

    Terminal Name Function Remarks
    1 GND Ground
    2 VCC Positive power supply
    voltage input
    3 SDA Serial data I/O line Connect the open-drain SDA
    terminal to a pull-up resistor.
    4 SCL Serial clock input Connect the open-drain SCL
    terminal to a pull-up resistor.

Field of View Characteristics

  • * Definition of view angle: Using the maximum Sensor output as a reference, the angular range where the Sensor output is 50% or higher when the angle of the Sensor is changed is defined as the view angle.

D6T-44L-06/06H

  • Field of view in X Direction
    Field of view in X Direction
  • Field of view in Y Direction
    Field of view in Y Direction
  • Detection Area for Each Pixel
    Detection Area for Each Pixel

D6T-8L-09/09H

  • Field of view in X Direction
    Field of view in X Direction
  • Field of view in Y Direction
    Field of view in Y Direction
  • Detection Area for Each Pixel
    Detection Area for Each Pixel

D6T-1A-01

  • Field of view in X Direction
    Field of view in X Direction
  • Field of view in Y Direction
    Field of view in Y Direction
  • Detection Area for Each Pixel
    Detection Area for Each Pixel

D6T-1A-02

  • Field of view in X Direction
    Field of view in X Direction
  • Field of view in Y Direction
    Field of view in Y Direction
  • Detection Area for Each Pixel
    Detection Area for Each Pixel

D6T-32L-01A

  • Field of view in X Direction
    Field of view in X Direction
  • Field of view in Y Direction
    Field of view in Y Direction
  • Detection Area for Each Pixel
    Detection Area for Each Pixel

Dimensions

(Unit: mm)

  • * Due to insulation distance limitations, do not allow metal parts to come into contact with the Sensor.
  • * Unless otherwise specified, a tolerance of ±0.3 mm applies to all dimensions.

D6T-44L-06/06H

  • D6T-44L-06/06H
  • Supporting and Mounting Area
    (Shaded Portion)
    Top View
    Top View
    Bottom View
    Bottom View

D6T-8L-09/09H

  • D6T-8L-09/09H
  • Supporting and Mounting Area
    (Shaded Portion)
    Top View
    Top View
    Bottom View
    Bottom View

D6T-1A-01 / D6T-1A-02

  • D6T-1A-01 / D6T-1A-02
  • Supporting and Mounting Area
    (Shaded Portion)
    Top View
    Top View
    Bottom View
    Bottom View

D6T-32L-01A

  • D6T-32L-01A
  • Supporting and Mounting Area
    (Shaded Portion)
    Top View
    Top View
    Bottom View
    Bottom View

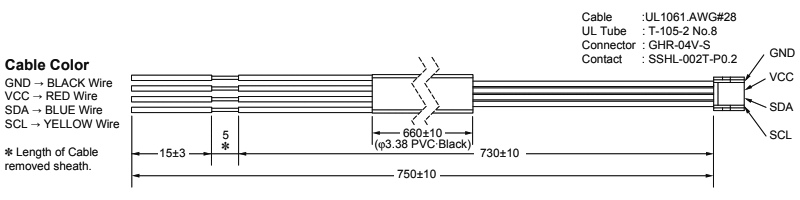

D6T-HARNESS-02
(Optional - sold separately)

D6T-HARNESS-02

Safety Precautions

Precautions for Correct Use

Installation
  • The Sensor may not achieve the characteristics given in this datasheet due to the ambient environment or installation location. Before using the Sensor, please acquire an adequate understanding and make a prior assessment of Sensor characteristics in your actual system.
Operating Environment
  • Do not use the Sensor in locations where dust, dirt, oil, and other foreign matter will adhere to the lens. This may prevent correct temperature measurements.
  • Do not use the Sensor in any of the following locations.

    • Locations where the Sensor may come into contact with water or oil.
    • Outdoors
    • Locations subject to direct sunlight.
    • Locations subject to corrosive gases (in particular, chloride, sulfide, or ammonia gases).
    • Locations subject to extreme temperature changes.
    • Locations subject to icing or condensation.
    • Locations subject to excessive vibration or shock.
Noise Countermeasures
  • The Sensor does not contain any protective circuits. Never subject it to an electrical load that exceeds the absolute maximum ratings for even an instance. The circuits may be damaged. Install protective circuits as required so that the absolute maximum ratings are not exceeded.
  • Keep as much space as possible between the Sensor and devices that generates high frequencies (such as high-frequency welders and high-frequency sewing machines) or surges.
  • Attach a surge protector or noise filter on nearby noise-generating devices (in particular, motors, transformers, solenoids, magnetic coils, or devices that have an inductance component).
  • In order to prevent inductive noise, separate the connector of the Sensor from power lines carrying high voltages or large currents. Using a shielded line is also effective.
  • If a switching requlator is used, check that malfunctions will not occur due to switching noise from the power supply.
Handling
  • This Sensor is a precision device. Do not drop it or subject it to excessive shock or force. Doing so may damage the Sensor or change its characteristics. Never subject the connector to unnecessary force. Do not use a Sensor that has been dropped.
  • Take countermeasures against static electricity before you handle the Sensor.
  • Turn OFF the power supply to the system before you install the Sensor. Working with the Sensor while the power supply is turned ON may cause malfunctions.
  • Secure the Sensor firmly so that the optical axis does not move.
  • Install the Sensor on a flat surface. If the installation surface is not even, the Sensor may be deformed, preventing correct measurements.
  • Do not install the Sensor with screws. Screws may cause the resist to peel from the board. Secure the Sensor in a way that will not cause the resist to peel.
  • Always check operation after you install the Sensor.
  • Use the specified connector (GHR-04 from JST) and connect it securely so that it will not come off. If you solder directly to the connector terminals, the Sensor may be damaged.
  • Make sure to wire the polarity of the terminals correctly. Incorrect polarity may damage the Sensor.
  • Never attempt to disassemble the Sensor.
  • Do not use the cable harness to the other product.
